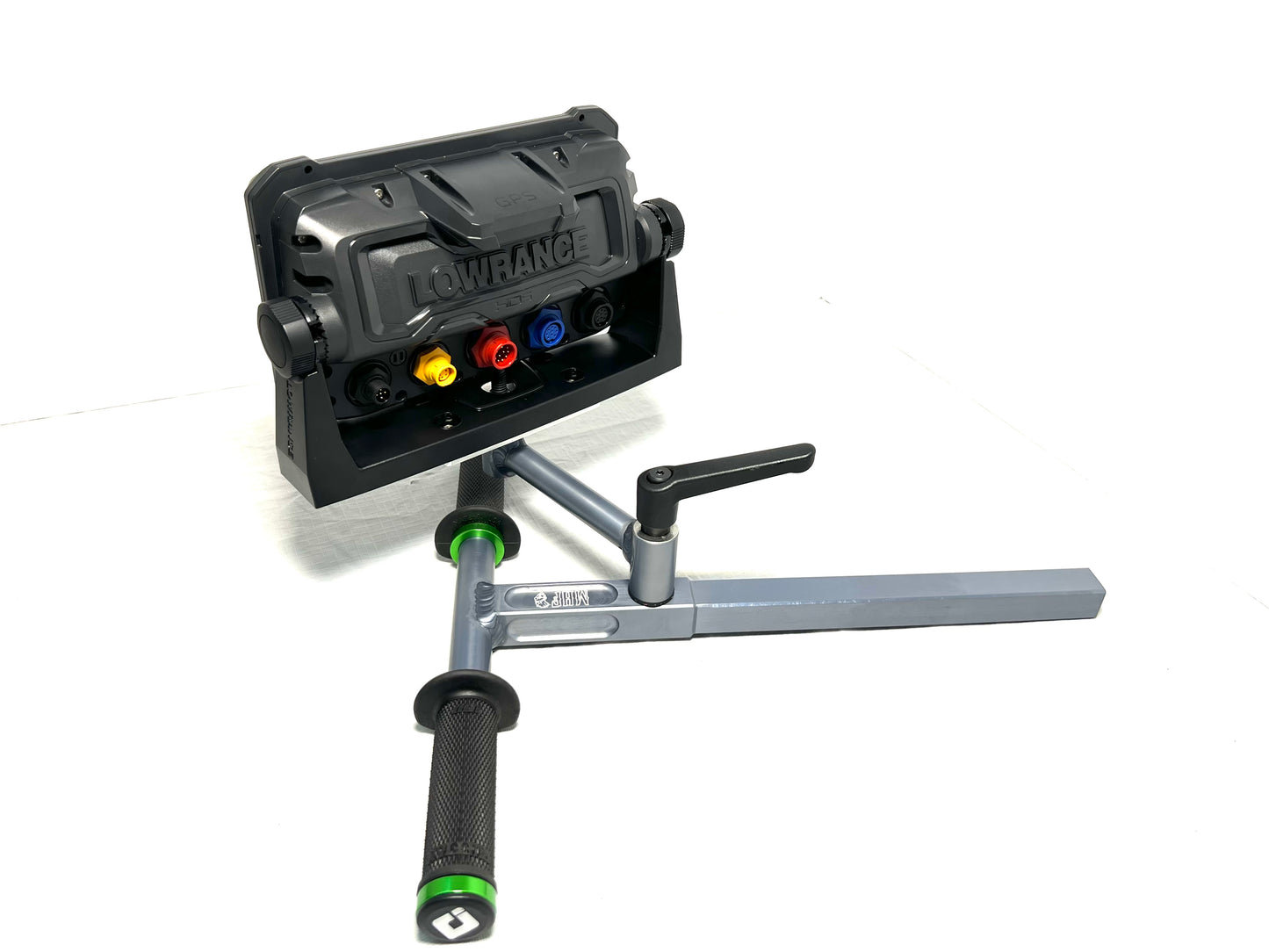

Lowrance Adapter for Metal Head Mounts

Lowrance Adapter for Metal Head Mounts

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size

Lowrance GPS units are some of the more sought after navigation platforms in the offroad world powering desert racers through some of the toughest terrain with pinpoint reliability! This adapter plate and hardware will make mounting your Lowrance a breeze to install onto all of our mounting systems. The supplied locking nut will enable you to adjust the amount of tension you'd like so you can swivel the GPS to get the position you'd like to see, while not moving during a hard ride!

* Please note, there are two different size adapter plates. make sure to measure your Lowrance gimbal bracket hole pattern and choose accordingly. *

small - 3 9/16" X 1 1/4"

large - 5 1/2" x 1 1/4"



Tools required for install:



Power Drill

3/8" drill bit

7/8" step bit/unibit

10mm and 9/16" socket and ratchet

Metric allen wrench set



 Installation Instructions:



 Step 1: Bolt our plate onto your Lowrance Gimbal mount, then using our adapter plate as a guide, use a 3/8" drill bit to drill through the Gimbal mount through the CENTER hole in our adapter plate.

Step 2: Unbolt our adapter plate and open the 3/8" hole you drilled into the gimbal mount up to 13/16 or 7/8" to make enough room to use a socket to tighten down the locking nut.

Step 3: Lastly, bolt your adapter plate back on, put the supplied rubber washer between the bottom of our adapter plate and the top of our pivot rod to protect the anodized finishes, then slide the stainless flat washer onto the top of the adapter plate from the side with the opening. Install the Gimbal Mount over the stud and put the locking nut on, now set the desired amount of tension you'd like to keep the unit from swiveling by itself but easy enough to swivel when you want to adjust the direction it faces.

Step 4: Frickin SEND IT Bro!



Materials

6061 T-6 Aluminum

Shipping & Returns

Multiple shipping options available

Returns subject to 10% restocking fee, custom colors are subject to varying restocking fee.

Care Instructions

Do not wash with harsh chemicals, for longest lasting finish store out of direct sunlight, finish is scratch resistant, not scratch proof.
